Setting Up DNS on Google Cloud

This article provides step-by-step guidance for Setting Up DNS on Google Cloud to support Redis clusters. It includes instructions for Choosing a Cluster FQDN, configuring DNS records via Google Cloud DNS, finalizing Cluster Setup, handling Alternative Load Balancer Options, resolving Common DNS Issues, and Additional Resources. The guide ensures high availability and reliable node discovery via FQDN-based resolution.

Prerequisites

• A Google Cloud project with Cloud DNS enabled
• An existing hosted zone (e.g., demo.redislabs.com)
• External/public IP addresses for all Redis Enterprise nodes
• Permissions to create and modify DNS records in Google Cloud DNS

Step-by-Step: DNS Setup on Google Cloud

1. Choose and Set the Cluster FQDN
   • Example: mycluster.example.com
   • This will be the permanent identifier for your Redis cluster and cannot be changed after installation.
   • The FQDN must follow RFC 952 and RFC 1123 naming standards.
2. Configure FQDN During Installation
   • During Redis setup, enter the selected FQDN in the Cluster Name / FQDN field.
   • Redis nodes will act as authoritative DNS servers for the delegated subdomain.
     See Configure Cluster DNS for more details.
3. Access Google Cloud DNS
   • Open the Google Cloud DNS Console.
   • Click on your existing DNS zone (e.g., demo.redislabs.com).
4. Create an NS Record for the Redis Cluster
   • Record Name: mycluster (subdomain of your DNS zone)
   • Record Type: NS
   • TTL: 300
   • Data:
     node1.mycluster.b12.lab
node2.mycluster.b12.lab
node3.mycluster.b12.lab

5. Create A Records for Cluster Nodes

   • Add an A record for each Redis node in the same zone (b12.lab):

     node1.mycluster.b12.lab   A   [External IP of node 1]
     node2.mycluster.b12.lab   A   [External IP of node 2]
     node3.mycluster.b12.lab   A   [External IP of node 3]

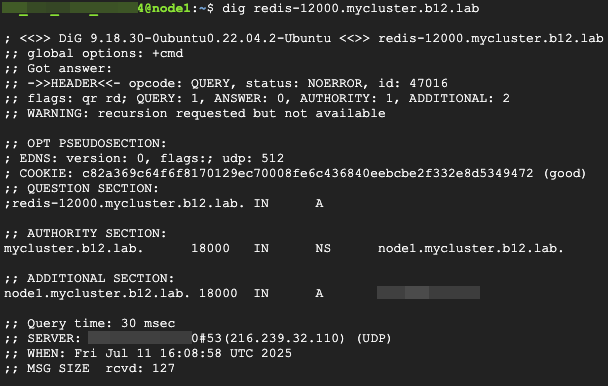

6. Verify DNS Propagation

   • Use dig, host, or nslookup to confirm your FQDN resolves from external/internal clients:
     dig node1.mycluster.b12.lab
host redis-12345.mycluster.example.com

     You can also use an online DNS Propagation Checker to verify resolution globally.


7. Finalize Redis Cluster Setup

   • Once DNS records have been propagated, Redis automatically generates FQDN-based database endpoints such as:

     redis-12345.mycluster.b12.lab

   • Applications connect using these endpoints. Internal DNS resolution supports automatic failover and high availability.

Alternative: Use a Load Balancer (Optional)

• If DNS setup isn't feasible, you may place a load balancer in front of your Redis nodes.
• This method reduces feature parity (e.g., no transparent shard migration or dynamic endpoints) but provides a DNS-less access path.

Troubleshooting Common Issues
