Monitoring Redis Cloud with Prometheus and Grafana – Redis Knowledge Base

Redis Cloud Pro exposes an internal Prometheus endpoint so you can collect performance and infrastructure metrics and visualize them in Grafana. This article explains the required prerequisites, walks through a complete step-by-step setup, includes common troubleshooting scenarios, and links to official Redis and Grafana resources under Additional Resources. Redis also provides pre-built Grafana dashboards tailored to subscription, database, and Active-Active metrics.

Prerequisites

To enable observability with Prometheus and Grafana in Redis Cloud Pro:

Redis Cloud Pro subscription required
Prometheus integration is not supported on the Essentials tier.
Private networking enabled
Use VPC Peering or Private Service Connect to connect your monitoring infrastructure to Redis Cloud.
Monitoring host co-located in same cloud/region
Deploy Prometheus and Grafana in the same provider and region to reduce latency and ensure access to private IP ranges.
Valid RFC 1918 private IP assignment
Monitoring hosts must use IPs from private ranges (e.g., 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16).
Required network access
- Outbound: TCP port 8070 to Redis Cloud Prometheus endpoint (internal.<cluster_address>:8070)
- Inbound: TCP ports 9090 (Prometheus) and 3000 (Grafana)

Step-by-Step Setup

1. Set Up VPC Peering or PSC
Create a peering connection from your monitoring VPC to the Redis Cloud VPC using the Redis Cloud UI.
Find the internal Prometheus endpoint under Configuration, and note that Prometheus must scrape it on port 8070.

2. Launch Monitoring Instance
Spin up a VM/EC2/GCE instance within the peered VPC.

Ensure outbound port 8070 is open to Redis Cloud.
Ensure inbound ports 9090 and 3000 are open for Prometheus and Grafana UIs.
Verify the instance received a valid private IP.

3. Install Prometheus & Grafana Using Docker
Create a prometheus.yml config file:

global:
scrape_interval: 15s
   evaluation_interval: 15s
   # Attach these labels to any time series or alerts when communicating with
   # external systems (federation, remote storage, Alertmanager).
   external_labels:
       monitor: "prometheus-stack-monitor"
# Load and evaluate rules in this file every 'evaluation_interval' seconds.
#rule_files:
# - "first.rules"
# - "second.rules"
scrape_configs:
   # scrape Prometheus itself
   - job_name: prometheus
   scrape_interval: 10s
   scrape_timeout: 5s
   static_configs:
     - targets: ["localhost:9090"]
   # scrape Redis Cloud
   - job_name: redis-cloud
   scrape_interval: 30s
   scrape_timeout: 30s
   metrics_path: /  # For v2, use /v2
   scheme: https
   static_configs:
     - targets: ["<prometheus_endpoint>:8070"]

Create a docker-compose.yml file to launch both Prometheus and Grafana:

version: '3'
services:
   prometheus-server:
       image: prom/prometheus
       ports:
           - 9090:9090
       volumes:
           - ./prometheus/prometheus.yml:/etc/prometheus/prometheus.yml
   grafana-ui:
       image: grafana/grafana
       ports:
           - 3000:3000
       environment:
           - GF_SECURITY_ADMIN_PASSWORD=secret
       links:
           - prometheus-server:prometheus

Start the containers:

docker compose up -d

4. Confirm Prometheus Access
Open Prometheus at http://<monitor-host>:9090.

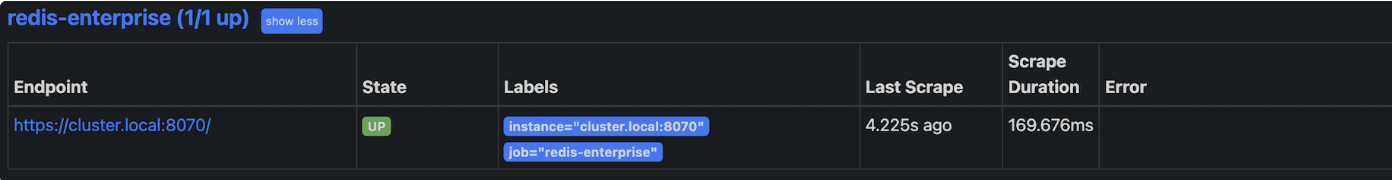

Navigate to Status > Targets and verify the Redis Cloud target is UP.
Run queries like:

up
redis_memory_used_bytes
redis_connected_clients

5. Connect Grafana & Import Dashboards
Open Grafana at http://<monitor-host>:3000 (default user: admin, password: secret).

Add a Prometheus data source:
- Name: redis-cloud
- URL: http://prometheus-server:9090
- Access: Server
Import official Redis Grafana dashboards:
- Subscription Overview: Health, provisioning, and errors
- Database Metrics: Latency, memory usage, commands/sec, key counts
- CRDB/ReplicaOf Metrics: Replication lag, sync status

Visit the Redis Grafana dashboard repository for templates.

Troubleshooting

Symptom	Cause or Fix
Prometheus target is DOWN	Check VPC peering/PSC status, DNS resolution, and outbound rules on port 8070
Grafana panels are empty	Validate Prometheus data source and that Redis metrics are scraping correctly
Metrics lag or missing data	Increase `scrape_interval`; restart Docker if needed
No alerting configured	Add Alertmanager and rules for CPU, client count, latency, and failed ops
